Do More Work In Less Time & Save on Heavy Raking Jobs
Complete machine with Briggs engine + attachment: $8,200
Complete machine with Honda engine + attachment: $8,600
Attachment only price: $4,250
Machines typically ship within 48 hours

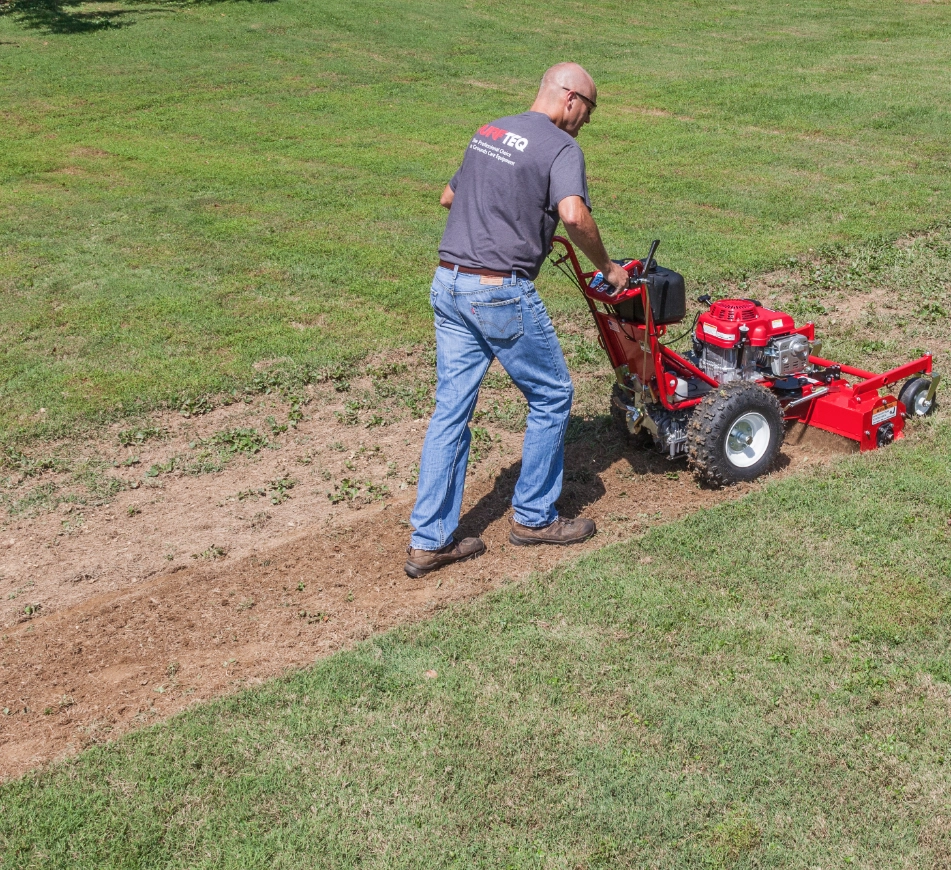

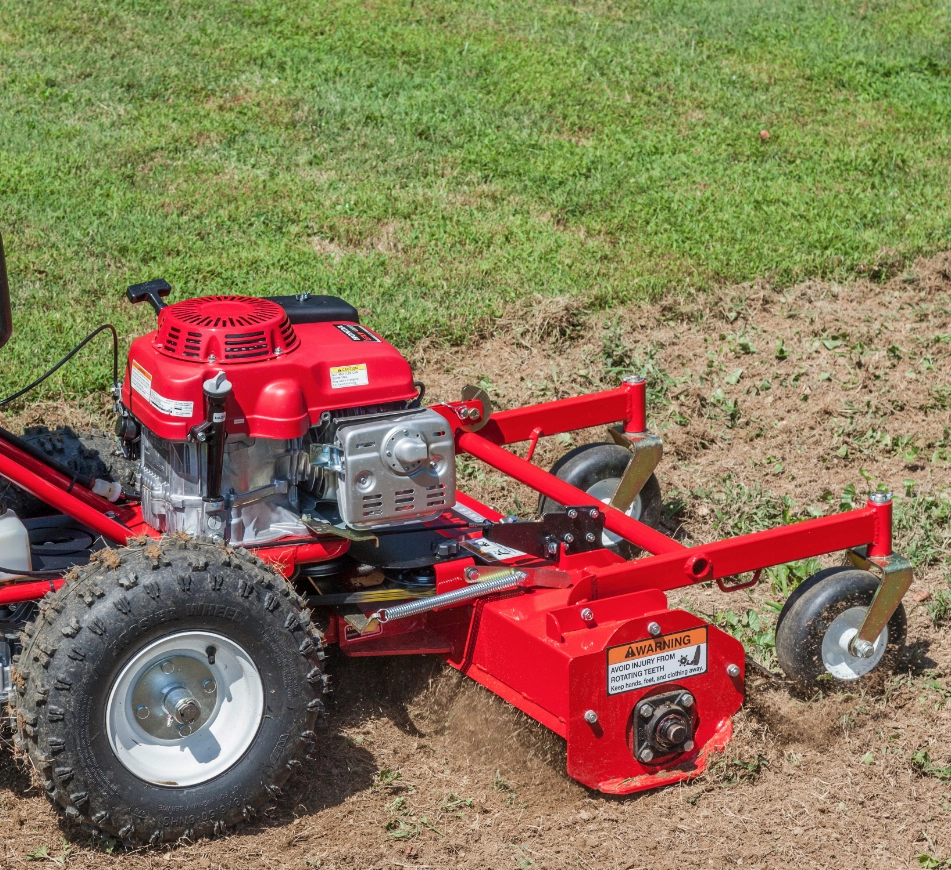

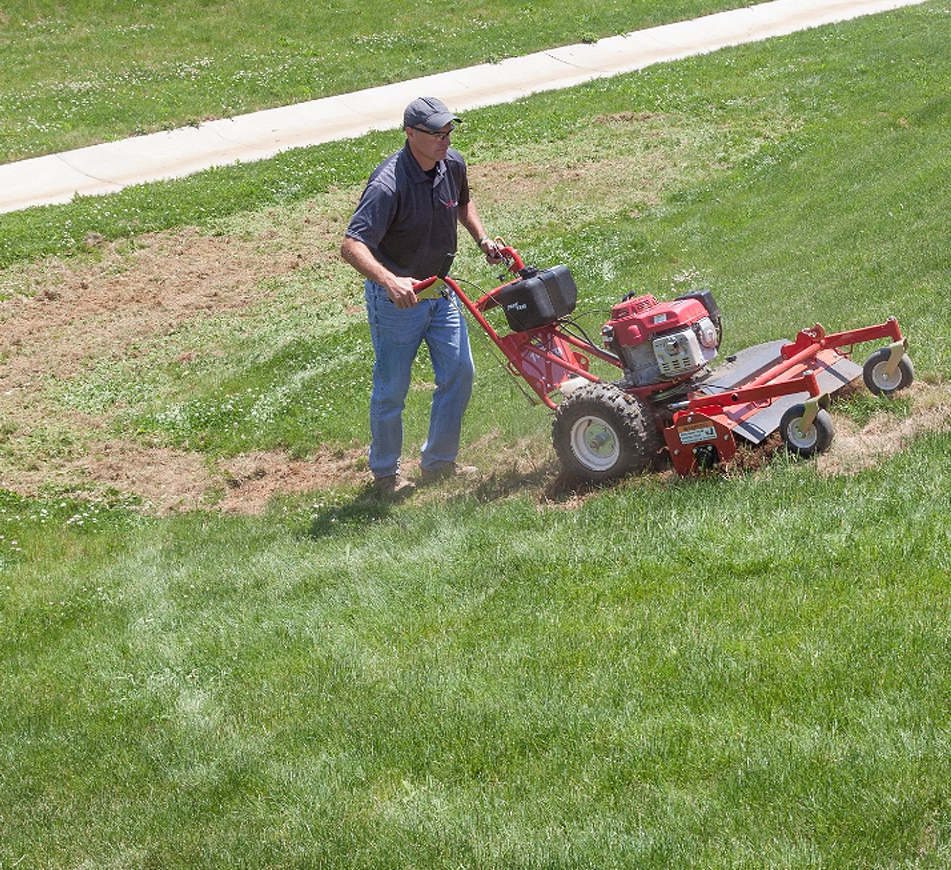

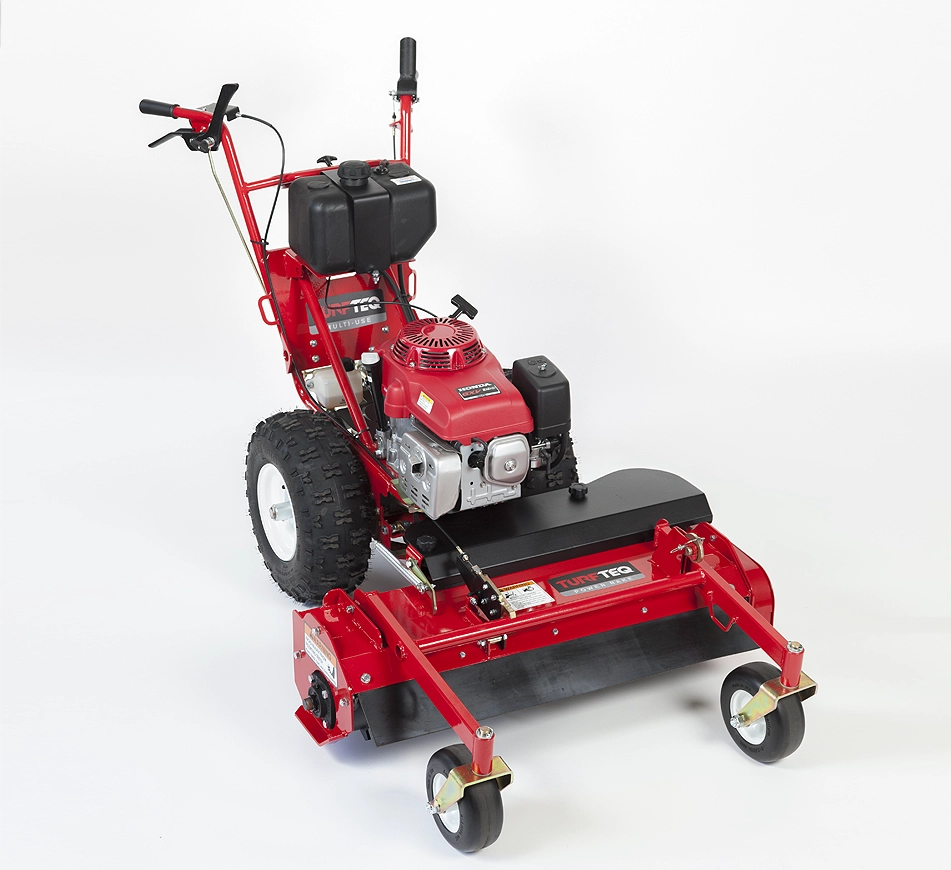

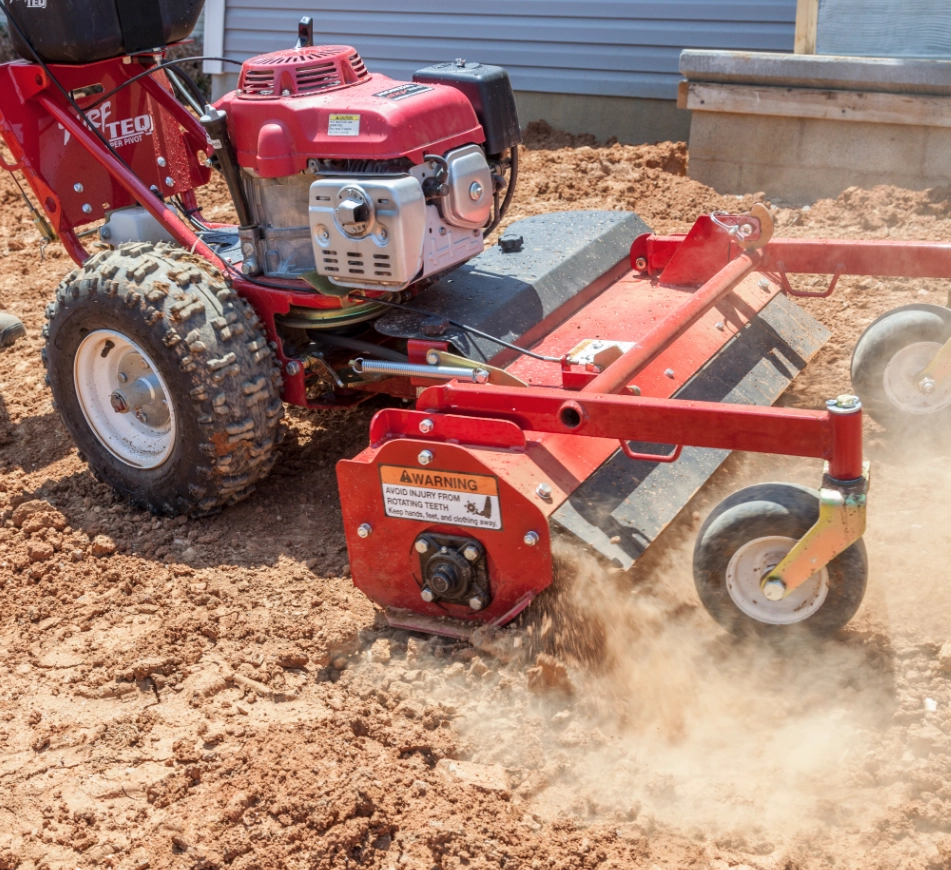

The TURF TEQ Power Rake is a valuable time-saving tool for all types of seedbed preparation, lawn renovation and raking jobs. With its compact design, the Power Rake can also go where tractor and skid steer mounted versions of this product can’t go, and can do its job without damaging healthy turf. You’ll get more work done faster and drastically increase the profitability of your business.
The Power Rake features a 36-inch wide drum that can be adjusted to pivot left or right so that debris can be windrowed. The Power Rake also features an on-the-go differential lock for exceptional traction and productivity – even on steep grades. It’s a machine that will save you incredible amounts of time on labor-intensive projects.
Why Turf Teq?
Work much faster without sacrificing results
Do more projects with less manpower
36″ wide drum fits where larger machines won’t

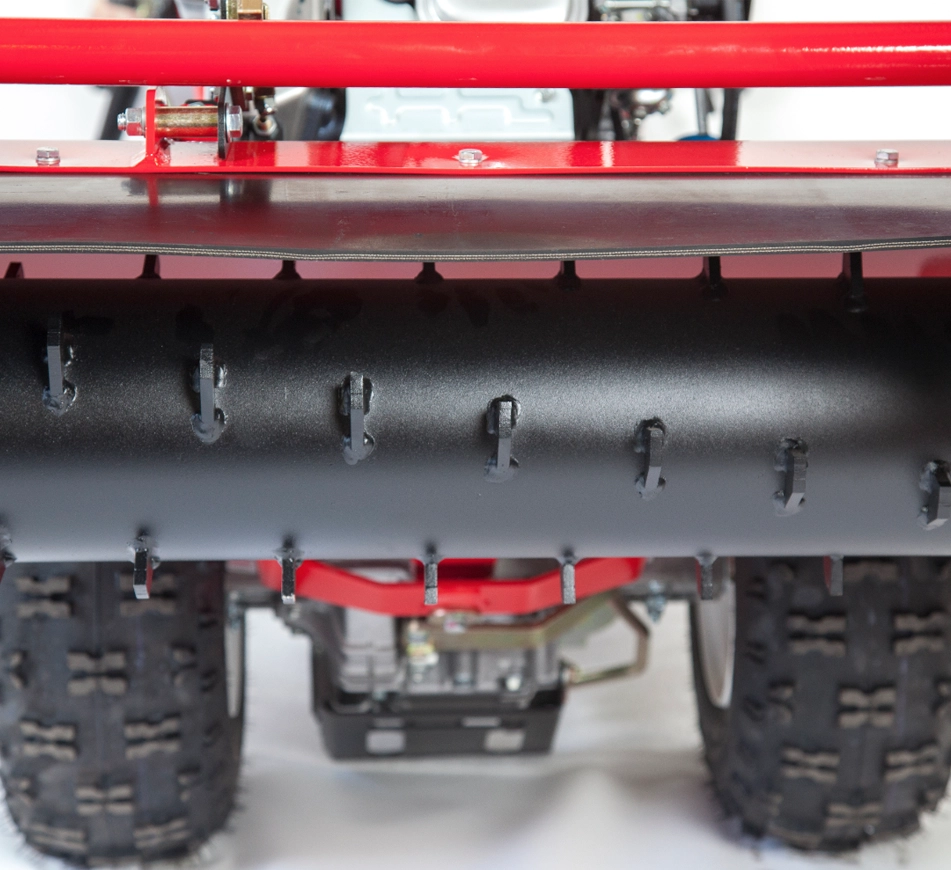

Welded carbide teeth are designed to dig & scuff soil
Adjustable drum height for optimal results in various conditions
Easily-to-angle drum rakes rocks & debris to the left or right
Self-propelled, walking-forward design for easy maneuverability
Flexible uses include pre-seeding, repairing turf & more
Won’t damage existing healthy turf
Multi-use technology to maximize your equipment investment
Proven reliability for experienced landscapers
High productivity, lower cost over time and increased profitability
Uses
Rough grading soil
Raking rocks & debris
Pulverizing & mixing soil
Finishing around newly-poured walls
Moving soil from piles
Windrowing rocks and debris
Renovating lawns
Reworking dead grass areas
Preparing seed beds
Leveling high spots in lawns
Repairing damaged sod areas
Cutting for over-seeding
Save time
Increase profitability
Features
36″ heavy-duty, power rake drum
Left, right & center pivoting drum
Pivots 15 degrees left & right
Tight turning radius
Honda GXV390 or Briggs & Stratton 344cc engines available
Variable speed, hydrostatic transmission with locking differential
Controls at the operator’s position
Compatible with all Turf Teq multi-use attachments
Friendly, expert support
Comprehensive 1-Year warranty
Made in the USA from high-quality steel components
Specs
Drivetrain
1) Engine: Honda GVX390
Oil: 1.1 Quart 10w-30
Single cylinder 4-stroke gasoline engine.
390cc Displacement
17.8lb-ft Torque
Splash/Pressure Lubrication
Recoil Start
2) Transmission: Hydrostatic Tuff Torq K62
Power Forward/Reverse
Oil: 10w-30
Torque Rating: 217lb-ft
Top Speed 4.5MPH
Locking Differential
3) Attachment Power: Mechanical Clutch/Brake to belt drive. NORAM Clutch.
Belt Drive From Clutch to Reduction Gearbox
#50 Chain Drive From Gearbox to Rake Rotor
Frame Specs
1) Schedule 40 welded steel tube
2) Powder Coated Frame
3) Multi-use Tractor can be used for other attachments
Machine Features
1) Transmission features differential lock
2) Max Digging Depth – 2” below surface
3) Liquid ballast filled drive tires
4) 2.5 Gallon Fuel Tank.
Rake Specifications
1) 36” Wide Drum
2) Pivots – 32 degrees of total movement
Pivot controlled by hand Trigger at Operator Station
The TURF TEQ Power Rake is available as a complete multi-use machine and as a rake attachment that will work with all other TURF TEQ multi-use products. Quickly change attachments to make the most out of your investment no matter what the season. Learn more about multi-use flexibility.
POWER RAKE GALLERY
“The TURF TEQ Power Rake gives us an amazing 80% labor savings over hand raking.” George & Brian Benckini – Benckini Landscaping
